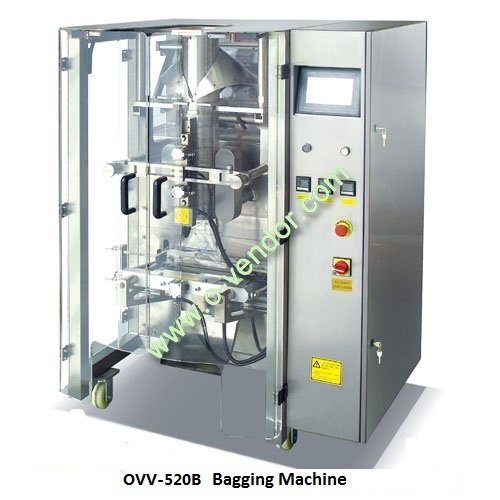

OVV-320, OVV-420 and OVV520B Packing Machine are the medium speed vertical form fill and seal machine, which is also known as Bagger or Bagging Machine. It can make pillow bag, gusset bag or vacuum bag with optional devices. Optional devices are also available for batch-coding, air flushing, punching holes/Euro-slot in the bag or making chain bags, etc.
These Machine are suitable for packing granular products, such as coffee bean, pet food, sugar, salt, spice, rice, beans, peanut, potato chips, puffed food, jelly, gummy, snacks, etc.
They can work with Vibrating Feeder, Bucket Elevator/Belt Conveyor, Multihead weighers/Volumetric Cup Device, gantry, Take-off Conveyor and Lazy Susan to form a fully automatic packing line.
- Main Features
- Technical Data
- Video
- FEATURES
1. Synchronized Single or twin draw-down belt(s) with servo drive(optional).
2. Automatic film tracking system to keep the film in track accurately.
3. New design of integrated Forming set, very easy to change over between sizes.
4. Automatic Alarm system for safety and better operation experience.
5. Horizontal Seal with anti-corrugation device to guarantee perfect sealing.
6. Machine can make different types of bags like gusset bags, perforated bags and vacuum bags which allows the End User to market their product innovatively.
7. Stable and durable construction with stainless steel SUS304 to ensure hygiene level.
8. With Mitsubishi PLC control system and user-friendly touch screen HMI, the machine is very easy to operate.
OPTIONS:
1. Date Code Printer
2. Tear Notch Device
3. Hole Punching Sealing Jaws
4. Euro-slot Sealing Jaws
5. Gusset bag Device
6. Gas Flush Device
7. Chain bags Device
8. CE standard Safety Guard system
9. Servo Driven Drown-down Belt(s)
10. Siemens PLC control system for upgraded model.
|
Model |
OVV-320 |
OVV-420 |
OVV-520B |
|
Bag Type |
Pillow Bag, Gusset Bag or Vacuum Bag |
|
Packing Material |
Thermal sealable Laminated Film |
|
Film thickness |
40-90 Micron |
40-90 Micron |
40-90 Micron |
|
Feeding System |
Multihead weigher, Volumetric Cup, Auger Filler or Liquid/Paste Filler |
|
Film width range |
120-320mm |
120-420mm |
120-520mm |
|
bag size |
L 50-200mm;
W 60-150mm |
L 60-300mm;
W 50-200mm |
L 80-350mm;
W 50-250mm |
|
Air consumption |
0.25m3/min, 0.8Mpa |
0.4m3/min, 0.8Mpa |
0.4m3/min, 0.8Mpa |
Max
Speed |
Single belt |
70ppm |
70ppm |
60ppm |
|
Twin belts |
N/A |
90ppm |
80ppm |
|
Power supply |
220V, 50/60Hz, 2.2KW |
|
Net/Gross Weight |
300KG/400KG |
450KG/550KG |
480KG/580KG |
|
Machine Dimensions |
L1115 x W800 x H1370mm |
L1530 x W1100 x H1500mm |
L1560 x W1160 x H1530mm |
Note:
1. Product data are subject to change without notice. Always verify the latest information with us before purchase.
2. More models are available for different bag sizes on request.
-
