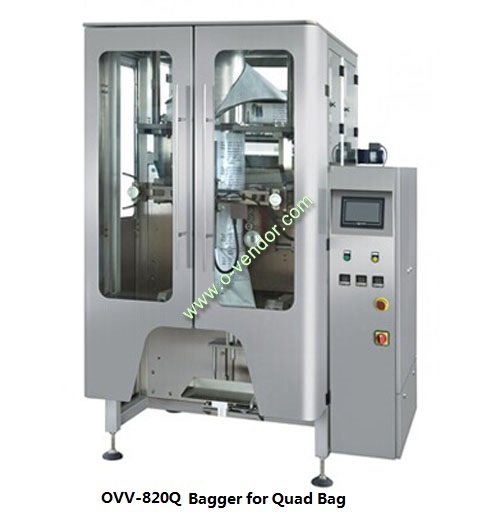

OVV-520Q and OVV-820Q Quad Bag / Stabilo Bag Packing Machine are vertical form, fill & seal machines for Quad bag or Stabilo Bag, they are also known as Quad Bag VFFS Baggers or Bagging Machines. Optional devices are also available for batch-coding, air flushing, punching holes/Euro-slot in the bag or vacuum pack, etc.

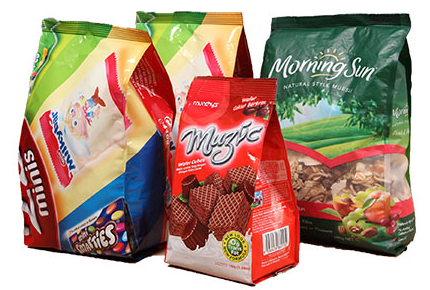

These machines save your cost on expensive premade Quad Bag / Stabilo Bag. Quad Bag is becoming more and more popular as it has stereo presentation and bigger internal volume. Also, it stands up and displays the product in a much better way.
OVV-520Q and OVV-820Q Automatic Packing Machine are suitable for packing granular and powder products, such as coffee bean, pet food, sugar, salt, spice, rice, beans, peanut, potato chips, puffed food, jelly, gummy, snacks, etc.
These machines can work with Vibrating Feeder, Bucket Elevator/Belt Conveyor/Auger Conveyor, Multihead Weighers / Volumetric Cup Device / Auger Filler, gantry, Take-off Conveyor and Lazy Susan as a typical fully automatic packing line.
- Main Features
- Technical Data
- Video
- FEATURES
1. Synchronized draw-down belts with twin servo drive.
2. Automatic film tracking system to keep the film in track accurately.
3. New design of integrated Forming set, very easy to change over between sizes.
4. Automatic Alarm system for safety and better operation experience.
5. Complex Vertical Seal system to ensure the quality of the quad sealing.
6. Machine can make quad bag, which allows the End User to market their product innovatively.
7. Rigid and durable construction to guarantee stable performance
8. With PLC control system and user-friendly touch screen HMI, very easy to operate.
9. With extra change parts, it can also make pillow bags.
OPTIONS:
1. Date Code Printer
2. Tear Notch Device
3. Hole Punching Sealing Jaws
4. Euro-slot Sealing Jaws
5. Vacuum bag system
6. Nitrogen Flush Device
7. Degassing Valve applicator for Coffee Beans
8. CE standard Safety Guard system
|
Model |
OVV-520Q |
OVV-820Q |
|
Bag Type |
Quad Seal bag / Stabilo Bag / Pillow Bag |
Quad Seal bag / Stabilo Bag / Pillow Bag |
|
Packing Material |
Thermal sealable Laminated Film |
Thermal sealable Laminated Film |
|
Film thickness |
40-90 Micron |
40-90 Micron |
|
Film width range |
220-520mm |
340-820mm |
|
Feeding System |
Multihead weigher, Volumetric Cup or Auger Filler |
Multihead weigher, Volumetric Cup or Auger Filler |
|
bag size |
L 100-350mm;
W 70-200mm
D 30-100mm |
L 150-500mm;
W 100-300mm
D 50-140 |
|
Air consumption |
0.35m3/min, 0.8Mpa |
0.4m3/min, 0.8Mpa |
|
Max Speed |
50ppm |
40ppm |
|
Power supply |
220V, 50/60Hz, 4.3KW |
220V, 50/60Hz, 4.7KW |
|
Net/Gross Weight |
750KG/850KG |
900KG/1020KG |
|
Machine Dimensions |
L2050 x W1300 x H1910mm |
L2050*W1800*H2140mm |
Note:
1. Product data are subject to change without notice. Always verify the latest information with us before purchase.
2. More models are available for different bag sizes on request.
-
