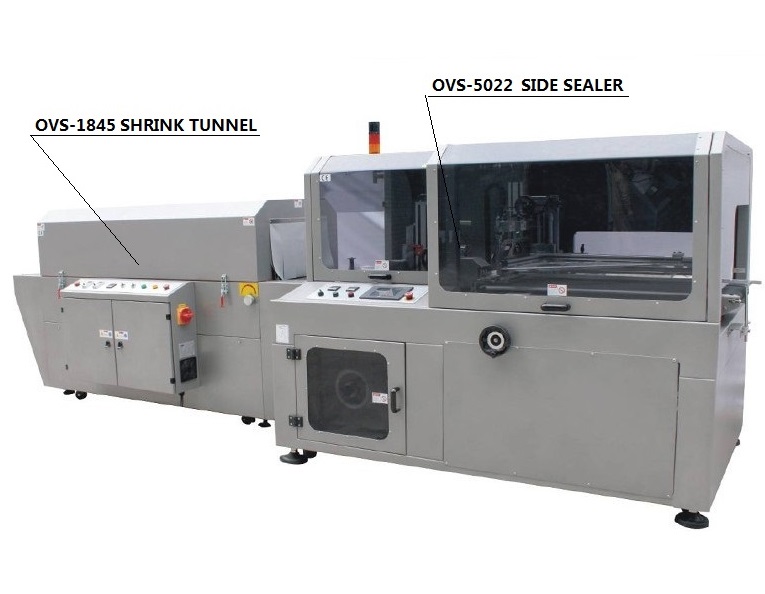

SIDE SEALER FEATURES:

1. Use PLC and user-friendly Touch Screen

2. PID temperature controller enables the sealing blades to perform a good sealing on various types of film, such as Polyethylene, Polyolefin, PVC, etc.

3. Infeed product detection with both horizontal and vertical photocells to suit various product.

4. No product length limit

5.Product changeover can be realized by wheel handle adjustments, no need changeover parts.

6. With Automatic waste strip wind up system

7. Machine produces an enclosed pack with 3 sides sealed.

3. With Motorized Infeed conveyor and free roller Outfeed conveyor.

SIDE SEALER OPTIONS

1. Kissing belt ( suitable for small product or multi-piece pack)

2. Eye mark tracking photocell


SHRINK TUNNEL FEATURES

1. Integrated thermal circulation system to warm up rapidly

2. SSR and PID temperature controller to regulate the temperature automatically and accurately

3. Use durable and stable metal heaters

4. Considerate design for easy maintenance and change-over of the heaters

5. Conveyor belt controlled by Frequency Inverter, variable speed

6. Live rollers belt as standard

7. Air volume adjustable with Frequency Inverter

8. Air blow direction adjustable on both sides

9. 100mm insulation around the heating zone to minimize the heat loss


SHRINK TUNNEL OPTIONS

1. Stainless steel and painted mild steel machine construction are available for options

2. Openable tunnel cover

3. Cooling fan at the tunnel exit

4. Dead roller belt
