HFFS Pouch Machine

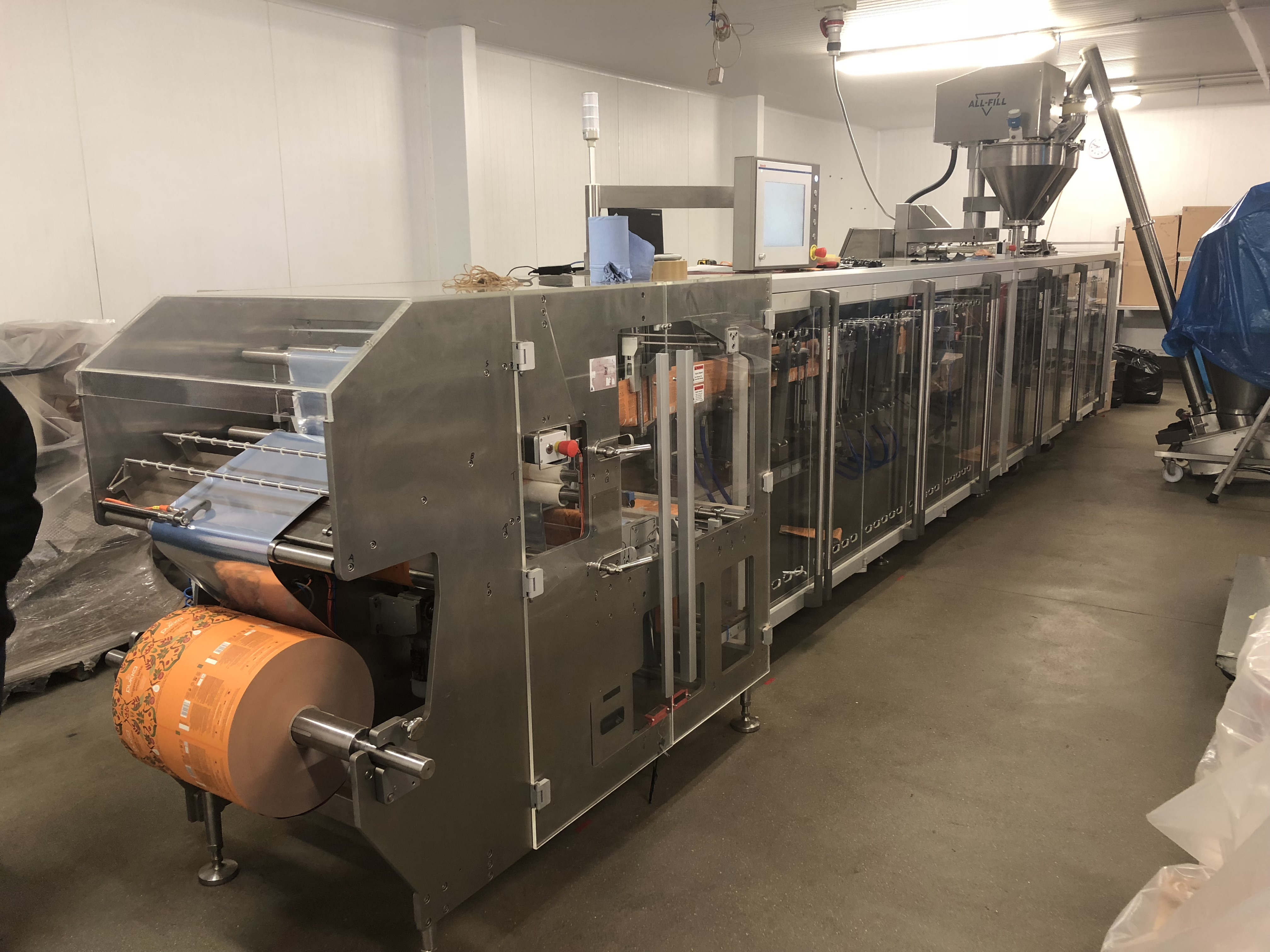

This series of machines is fully automatic HFFS type for Pouches Doypacks. The machine takes a reel of film, forms a pouch, fills it with product (with help of a dosing machine), seals it and outputs finished pouches. Zip device can be added to the machine if you need a pouch with zip. With different optional features, it can also do Shaped Die Cutting, Date Coding, Gas Flushing, Euro-slot, vacuum pack, etc.

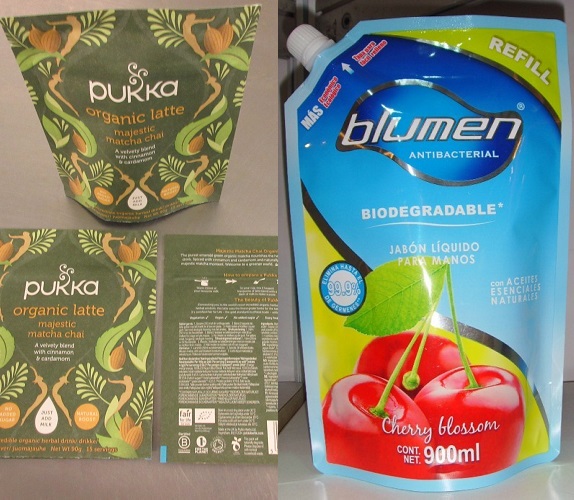

They are suitable to form, fill and seal Pillow Bag, Gusset Bag, Doypack, Stand-up Pouch, Zip Pouch, Spout Pouch, Shaped Pouch etc.

These machines are the most efficient and economical to run because you don’t have to buy the expensive pre-made pouch. Simplex model makes one pouch each time and Duplex mode makes two pouches each time.

Main Features
Technical Data
Video

1. All the electrical components are of world famous brands - easier to source them locally.
2. High efficiency guaranteed by 6 servo motors
3. Economical to run by saving your cost spending on pre-made pouches.
4. All doors are interlock with safety switches to ensure the safety of operators.

5. Contact parts are made of Stainless Steel. All parts are coded for easy maintenance. See picture below.
6. No pouch no filling or sealing.
7. With bottom vibrator to help product settle down.
8. Smooth running with very low noise.
9. User friendly Touch Screen HMI interface
10. High sensitivity photocell for eye mark tracking
11. PID temperature controller for sealing is very accurate and easy to set

12. Machine base are made from mild steel coated with epoxy paint and then covered with stainless steel. All food contact parts are made of stainless steel or food hygienic plastic material. Some parts are made of anode oxidized aluminum.

MAIN COMPONENTS
If not otherwise specified, main components in this machine will be world-wide brands as follows:-

* Touch Screen & PLC – Rexroth or Schneider

* Servo Motors – Rexroth or Schneider

* Frequency Inverter – Rexroth or Schneinder

* Motor – Lenze or SEW

* Sensors – Omron/SMC/FESTO

* PID Controller – Omron

* Terminals – Phoenix

* Pneumatics – FESTO/SMC

* Low-voltage Electrical parts - Schneider

OPTIONS:

* Date Code Printer

* QR Code Camera

* Zip Device

* Tear Notch Device

* Round hole / Euro-slot Pouch

* Shaped Pouch Die Cutter
* Spout Welding Device
* Dust Extraction facility

Model		OVS-220	OVS-330	OVS-280D		OVS-330D
Simplex/Duplex		Simplex	Simplex	Duplex		Duplex
Pouch Type		Flat-bottom Pouch, Doypack, Standup Pouch with/without zip etc.
Packing Material		Laminated heat sealable film, Min 60 micron thick.
Max film width		660mm	1100mm	660mm		660mm
Max Film Reel Diameter		550mm	550mm	550mm		550mm
Film Reel Core Diameter		70-72mm/150-152mm, please specify.
Pouch Size	Min WxHxB	85 x 140mm	150 x 200 mm	70 x 100mm		85 x 140mm
	Max WxHxB	160 x 230 x 100 mm	315 x 480 x 120 mm	135 x 280 x 100mm		160 x 230 x 100 mm
Air consumption		0.5-0.7 m³/min	1.0-1.5 m³/min	0.6-0.8 m³/min		0.6-0.8 m³/min
Max Packing Speed		Up to 60ppm	Up to 50ppm	Up to 100ppm		Up to 110ppm
Power supply		380V, 3 phase, 50Hz or otherwise specified.
Power Consumption		9.5Kw	11Kw		11Kw	11.5Kw
Noise Level		<80dB	<80dB		<80dB	<80dB
Net/Gross Weight		4200/5000Kg	6500/7500Kg	3800/4500Kg		6200/7200Kg
Machine Dimensions		676014501945mm	966019551885mm	5980x1002x1942mm		9350x1450x1945mm

Note:
1. Product data are subject to change without notice. Always verify the latest information with us before purchase.
2. Please ask if none of the above models suits your application. Custom made models are also available.
