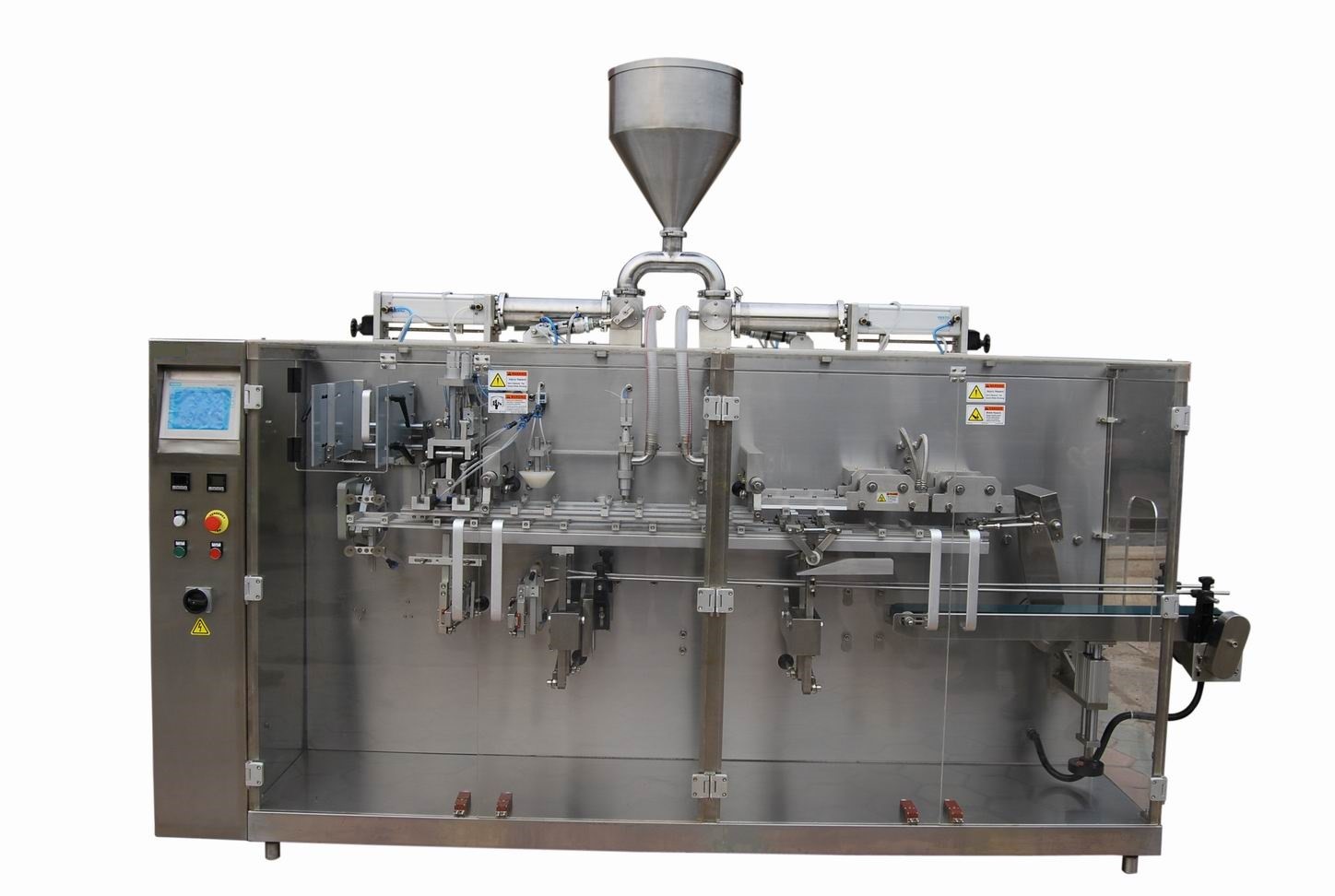

This series of machines take premade pouches, whether with or without zip, whether with or without spout, open the pouches, fill them with product (different product may require different dosing equipment), seal them and output the finished pouches. Zip Opening device can be added to the machine if the pouches are with zip. With different optional features, it can also do Date Coding, Gas Flushing, Vacuum Pack, Easy Tear Notch, Euro-slot Punching etc.
They are suitable to fill and seal Pillow Bag, Gusset Bag, Doypack, Stand-up Pouch, Zip Pouch, Spout Pouch, Shaped Pouch etc.
- Main Features
- Technical Data
- Video
- FEATURES
1. All the electrical components are of world famous brands - easier to source them locally.
2. High efficiency guaranteed by 6 servo motors
3. Economical to run by saving your cost spending on expensive pre-made pouches.
4. All doors are interlock with safety switches to ensure the safety of operators.
5. Contact parts are made of Stainless Steel.

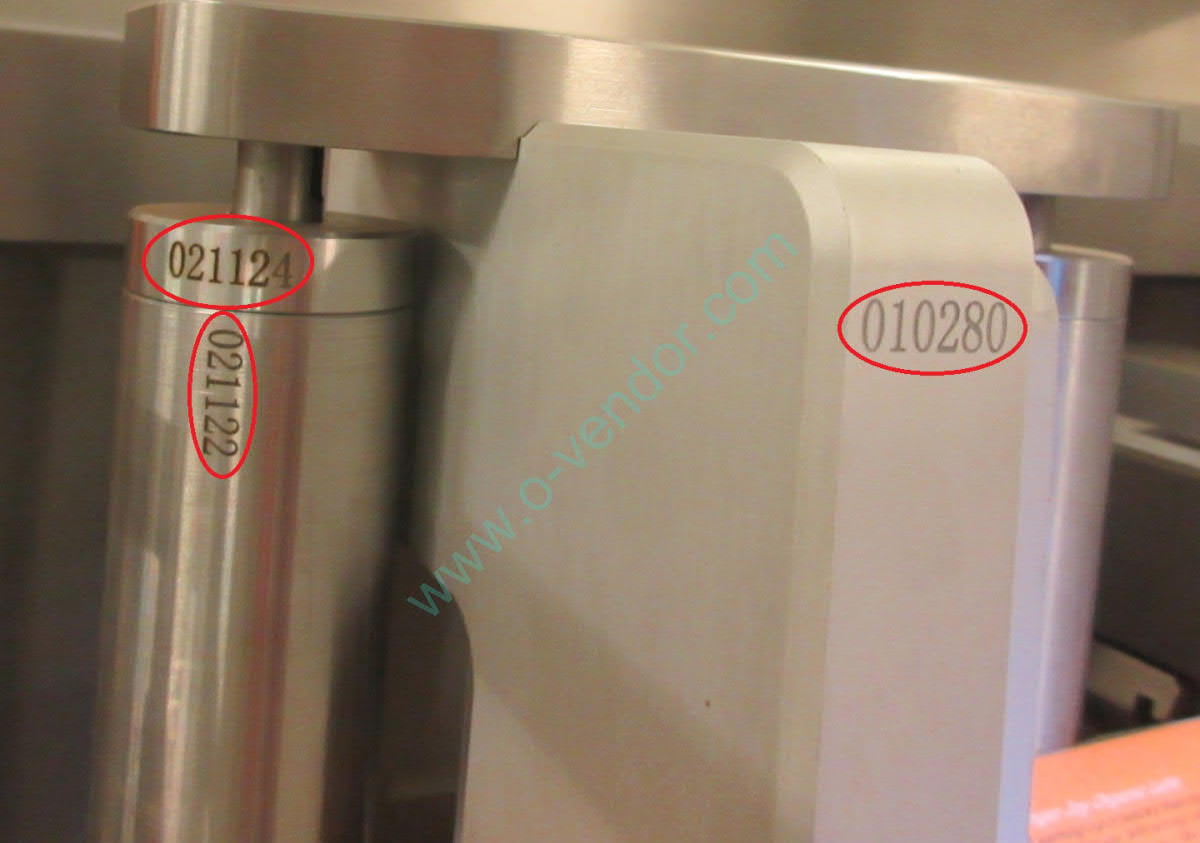

6. All parts are coded for easy maintenance.
7. No pouch no filling or sealing.
8. With bottom vibrator to help product settle down.
9. Smooth running with very low noise.
10. User friendly Touch Screen HMI interface
11. High sensitivity photocell for eye mark tracking
12. PID temperature controller for sealing is very accurate and easy to set
13. Machine base are made from mild steel coated with epoxy paint and then covered with stainless steel. All food contact parts are made of stainless steel or food hygienic plastic material. Some parts are made of anode oxidized aluminum.
MAIN COMPONENTS
If not otherwise specified, main components in this machine will be world-wide brands as follows:-
* Touch Screen – Schneider 10 inch
* PLC – Allen Bradley
* Frequency Inverter – Allen Bradley
* Motor – Lenze or SEW
* Sensors – Sick
* PID Controller – Omron
* Terminals – Phoenix
* Pneumatics – FESTO/SMC
* Low-voltage Electrical parts – Schneider
Safety Switches & Safety Relay - Pilz
OPTIONS:
* Date Code Printer
* QR Code Camera
* Zip Opening Device
* Tear Notch Device
* Round hole / Euro-slot Pouch
* Gas Flushing Device
* Vacuum Bag Device
* Vacuum Pump
|
Model |
OVH-220 |
OVH-260 |
OVH-330 |
|
Pouch Type |
Flat-bottom Pouch, Doypack, Zip Pouch, Spout Pouch, Shaped Pouch etc. |
|
Pouch Size |
Min WxHxB |
85 x 140 x 0mm |
150 x 180 x 0 mm |
150 x 200 x 0 mm |
|
Max WxHxB |
200 x 280 x 100 mm |
250 x 340 x 100 mm |
315 x 480 x 120 mm |
|
Air consumption |
0.6 -1.0 m3/min |
0.6 -1.0 m3/min |
0.7 -1.2 m3/min |
|
Max Packing Speed |
Up to 60ppm |
Up to 60ppm |
Up to 50ppm |
|
Power supply |
380V, 3 phase, 50Hz or otherwise specified. |
|
Power Consumption |
3.5Kw |
4 Kw |
4.5 Kw |
|
Noise Level |
<80dB |
<80dB |
<80dB |
|
Net/Gross Weight |
1300/1600Kg |
1450/1800Kg |
1800/2200Kg |
|
Machine Dimensions |
3169*2085*1480mm |
3320*2085*1530mm |
3935*2320*1550 |
Note:
1. Product data are subject to change without notice. Always verify the latest information with us before purchase.
2. Please ask if none of the above models suits your application. Custom made models are also available as well.-
