COMPACT DOYPACK FILL & SEAL MACHINE

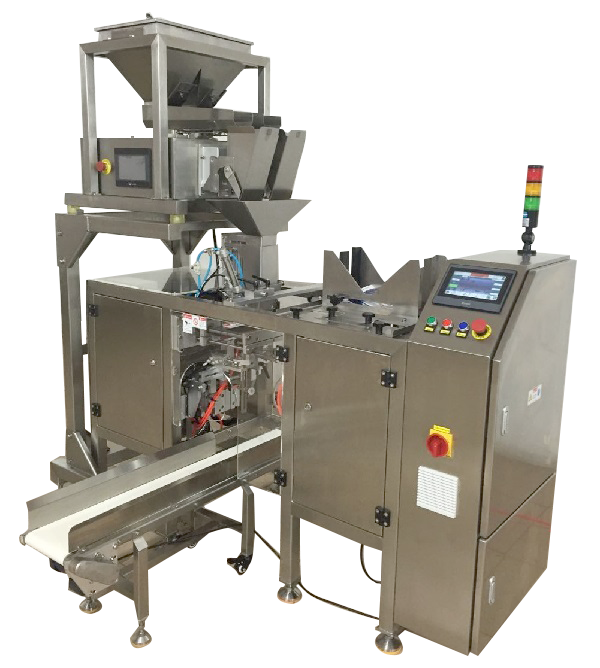

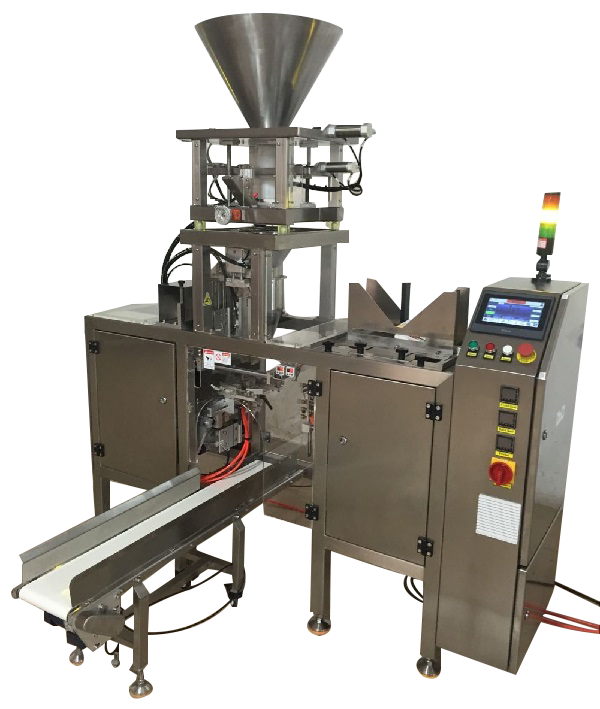

This series of Doypack machines are very compact and take very small footprint. These machines are ideal for starting a new business and various product range. They are not super fast but very easy to change over between sizes. Duplex machine is available as well. They usually work with Linear Weighers, Volumetric Cup, Auger Filler or Liquid Filler.
The compact Doypack Machines take premade pouches, whether with or without zip, whether with or without spout, open the pouches, fill them with product (different product may require different dosing equipment), seal them and output the finished pouches. Zip Opening device can be added to the machine if the pouches are with zip. With different optional features, it can also do Date Coding, Zip opening, Gas Flushing, Vacuum Pack, Easy Tear Notch, Euro-slot Punching etc.
They are suitable to fill and seal Pillow Bag, Gusset Bag, Doypack, Stand-up Pouch, Zip Pouch, Spout Pouch, Shaped Pouch etc.
- Main Features
- Technical Data
- Video
- FEATURES
1. Compact design with small footprint.
2. Machine pays itself back very quickly - very good cost performance.
3. Machine stops running when the safety door is open to ensure the safety of operators.
4. All contact parts are made of Stainless Steel for food hygienel No pouch no filling or sealing.
5. With Self-diagnosis function – when pouch is not opened properly, machine will not fill and seal.
6. With user friendly Touch Screen HMI interface and PLC controller.
7. With PID temperature controller for sealing.
MAIN COMPONENTS
If not otherwise specified, main components in this machine will be world-wide brands as follows:-
* Touch Screen – Kinco/Omron 7 inch
* PLC – Panasonic
* Vacuum Generator / Vacuum Pump – Airbest
* PID Controller – Omron/Yudian
* Pneumatics – Airtech/SMC
* Low-voltage Electrical parts – Schneider/Omron
OPTIONS:
* Date Code Printer
* Gas Flushing Device
* Bag Tapper
* Tear Notch Device
* Round hole / Euro-slot Pouch
* Zip Opening Device
* Gusset Bag Device
* Vacuum Bag Device
* Vacuum Pump
|
Model |
OVD-300 |
OVD-430 |
OVD-300Duplex |
|
Pouch Type |
Flat-bottom Pouch, Doypack, Box-bag, Standup Pouch with/without zip, with or without Spout |
|
Pouch Size |
Width range |
80-300mm |
80-300 mm |
80-200mm |
|
Length range |
100-300mm |
100-430mm |
100-300mm |
|
Sealing width |
Standard 10mm or otherwise specified between 5mm and 20mm |
|
Air consumption |
0.3 m3/min @0.6Mpa |
0.4 m3/min @0.6Mpa |
0.6 m3/min @0.6Mpa |
|
Max Packing Speed |
Up to 15ppm |
Up to 15ppm |
Up to 30ppm |
|
Power supply |
220V, single phase, 50Hz or otherwise specified. |
|
Power Consumption |
1.2Kw |
1.2 Kw |
1.5 Kw |
|
Machine Dimensions |
1770*510*1230mm |
1770*510*1360mm |
1790*1120*1450mm |
|
Packing Dimensions |
1860*600*1550mm |
1860*600*1650mm |
1890*1220*1750mm |
Note: Product data are subject to change without notice. Always verify the latest information with us before purchase.
-
