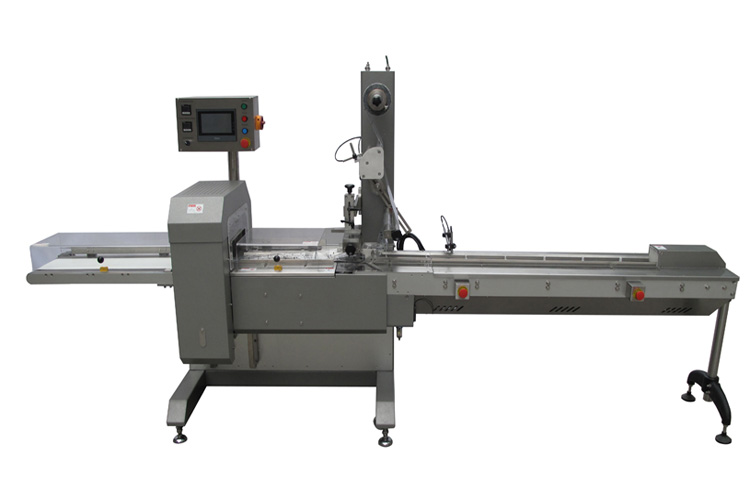

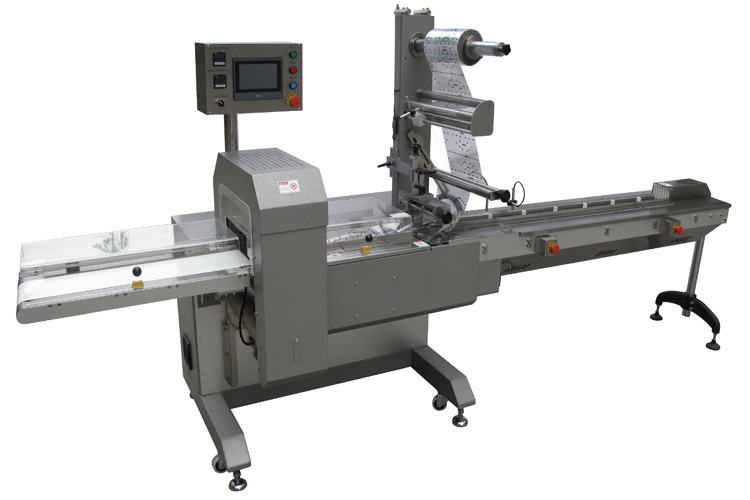

Flow Wrappers are usually used for packing regular shape products into pillow bags. They are very productive and low cost.
Compared to the Basic models, Servo Drive Flow Wrappers are much more flexible, easier to set up and operate. These machines are less complicated mechanically, less failure points and therefore much more reliable. They also save your cost on tthe packaging and energy.
Servo Drive Flow Wrappers are very widely used in various industries as follows:-
* Food & snacks such as biscuit, vitellus-pie, wafer biscuit, chocolate bars, bread, ice cream, moon cake, sweets, noodles, egg rolls, sausage, lollipops, inflight meal, food in trays etc.
* Daily consumables such as soap, towels, tissues, wet wipes, etc.
* Pharmaceuticals such as blister pack, pills, etc.
* Cutlery such as knife, fork, spoon, chopsticks, etc.
* Hardware like tools
* And many more
- Main Features
- Technical Data
- Video
- Features:
1. Driven by three Servo Motors. Much more flexible than basic models with Frequency Inverter
2. With PLC & user-friendly HMI control panel, very easy to set up and operate.
3. Self diagnosis function which indicates failures clearly.
4. When you change Bag Length setting on the screen, the actual bag length change instantly. Save your waste on the packaging film.
5. High sensitivity Eyemark photocell tracking to guarantee precision cutting position.
6. Bags length can be cut to fit product, can be cut to preset length or can be cut to the Eyemark position. Very flexible!
7. No product, no film feeding. Avoid empty bags!
8. When the End-seal Jaws cut on the product, the Jaws will stop and reverse automatically to protect the End-seal mechanism.
9. Independent PID controllers for Mid-Seal and End-Seal to guarantee accurate sealing temperature
10. Positioned stop function, you can set the blades to stop certain any angle when machine stops.
11. All food contact parts to be stainless steel.
12. The drive and transmission system are much simpler than basic models and therefore the machine is much more reliable.
13. With CE safety guard system as standard, including safety doors, safety switches and safety relay etc.
Options:-
* Date Code Priner
* Bespoke Automatic Product Feeding System
|
Model |
OVF-450S |
|
End Seal |
φ114 |
φ144 |
|
1SP |
2SP |
1SP |
2SP |
|
Min Bag Length |
120mm |
60mm |
150mm |
75mm |
|
Product height |
40mm |
40mm |
70mm |
70mm |
|
Bag width |
210mm |
|
Max Film width |
450mm |
|
Film roll diameter |
Max 350mm |
|
Max Packing Speed |
150ppm |
260ppm |
150ppm |
260ppm |
|
Total Power |
3.0 kw |
|
Power Supply |
3 phase, 380-415V, 50/60HZ, or otherwise specified. |
|
Machine size (LxWxH) |
4270 x 950 x 1600mm |
|
Machine weight |
550kg |
Note:
1. Product data are subject to change without notice. Always verify the latest information with us before purchase.
2. More models are available for different bag sizes on request.-
