OVF-800S is a high-speed Flow Wrapping Machine integrated with Product Aligner for packing confectionery products into pillow packs. The automatic Product Aligner is driven by servo motors. It takes the products out of the production line, lines them up straight as well as adjusts the space between products, so they are perfectly ready before going into the machine and being wrapped. The complete machine is perfect for soft or fragile products such as deposited or enrobed chocolate bars, coated wafers, biscuits, cereal bars and similar bar shaped products in fin-seal packs / pillow packs.
OVF-800S has up to NINE servo motors for product aligning, film feeding and sealing, which guarantees stable and high-speed running. Top speed goes up to 800ppm. It is very spectacular to see all products flying through the machine and come out nicely wrapped.
The Automatic Film Splicer (Film reels changeover automatically) has reduced the production down time and improved the efficiency greatly.
- Main Features
- Technical Data
- Video
- 1. This machine takes product from production line and complete product aligning, screening and wrapping all automatically.

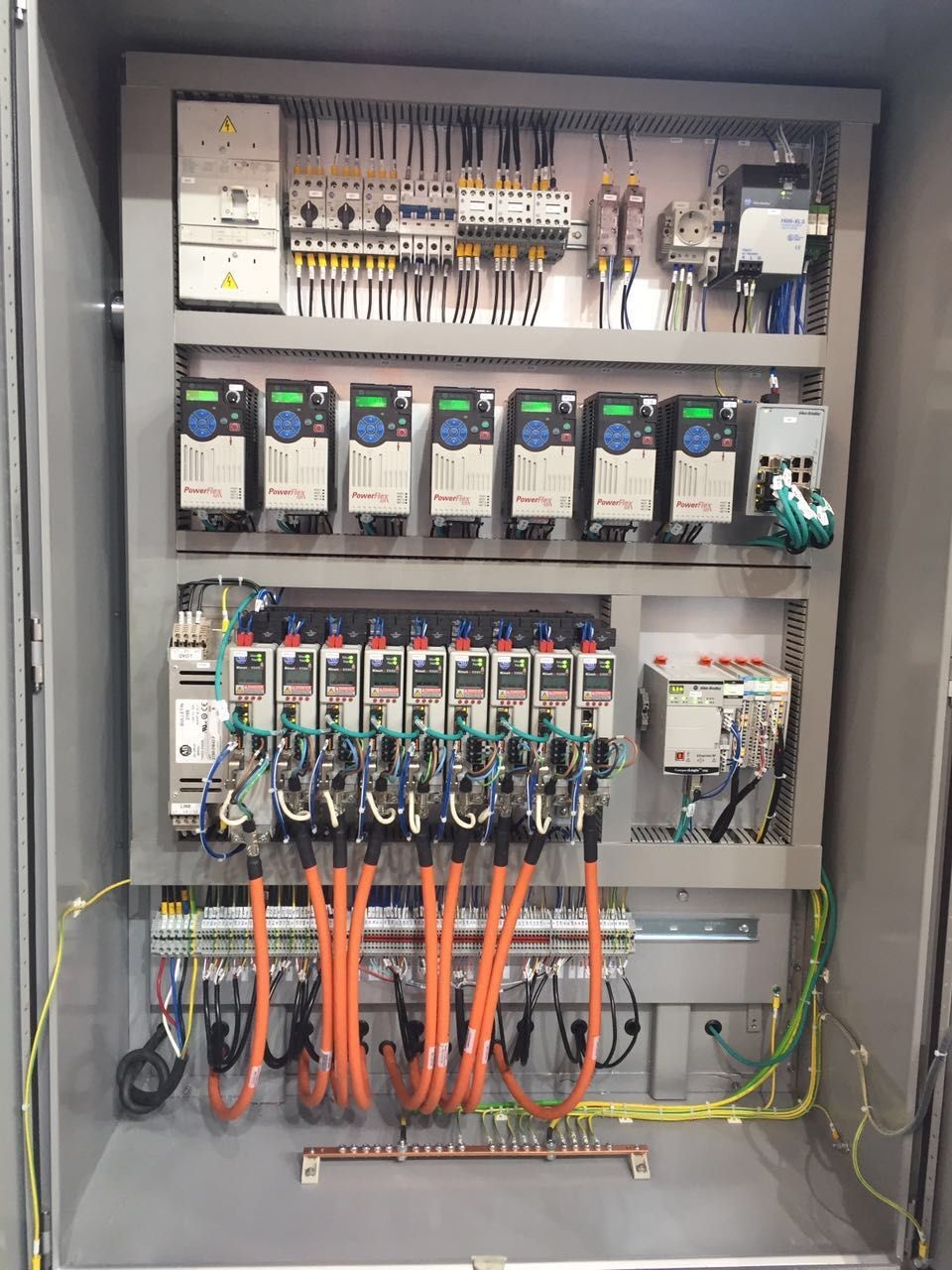

2. With up to 9 servo motors to guarantee the stability and efficiency.
3. With Automatic Film Splicer, saving film change-over time and improve the production efficiency greatly.
4. With Touch Screen HMI and PLC control system.
5. With operation menu in 6 languages for different end users around the world.
6. With V-belt design, belt is easy to remove for cleaning or maintenance.

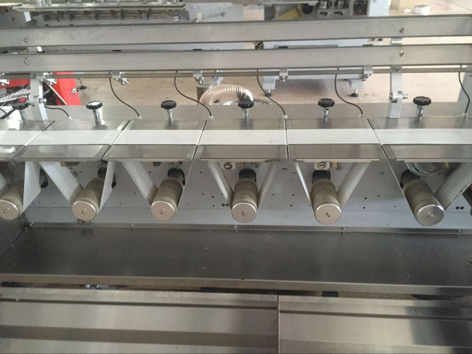

7. With many sensitive sensors on the Aligner to guarantee the products are in perfect position before entering the Flow Wrapping Machine.
8. With Water Cooling system to keep the belt cool.
9. Clever design in reject system to guarantee smooth running.
10. With safety features complying with PUWER regulations.
|
Packing Speed |
Up to 800 packs/min |
|
Product Dimension |
Length: 15 – 135mm |
Width: 15 – 60mm |
Height: 5 – 30mm |
|
Drive System |
9 x servo drives |
Conveying |
|
Aligning product |
|
Back sealing |
|
End sealing |
|
AC motors |
feeding and settling |
|
Power Rate |
10KW |
|
Power Spec |
380V, 3-phase, 50Hz or otherwise specified |
|
Control System |
PLC + Touch Screen HMI |
|
Utilities |
Compressed air |
0.2 Mpa; 2cbm/min |
|
Temperature |
Lower than 25℃ |
|
Humidity |
Less than 50% |
|
Wrapping material |
Heat sealable film and Cold sealable film |
|
Material Dimensions |
Reel Diameter |
max. 400mm |
|
Web Width: |
max. 120mm |
|
Machine Dimensions |
6725*1140*1885mm |
|
Weight |
Approx.1600 kg |
Note:
1. Product data are subject to change without notice. Always verify the latest information with us before purchase.
2. This machine is usually tailor made to customers. Please contact us to discuss your project.
-
